Unitree Intel Core i7 Computing Board
Genuine Unitree Intel Core i7 Computing Board — the user-development computer fitted as standard inside the B2 and the B2-W, mounting internally so AI, navigation and SLAM run onboard. Replacement, spare or extra slot.
- Unitree B2
- Unitree B2-W

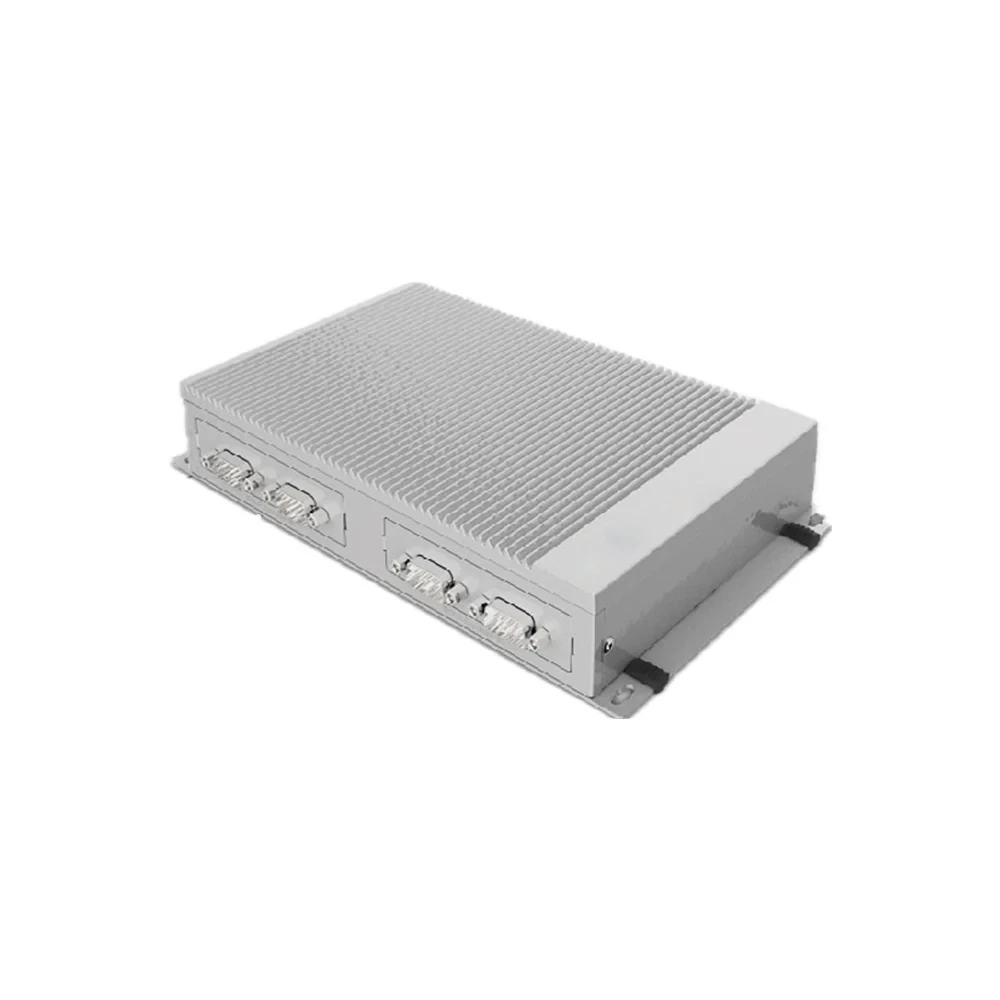

About the Unitree Intel Core i7 Computing Board
The Unitree Intel Core i7 Computing Board is the user-development computer that ships inside every B2 and B2-W: while the robot's own Intel Core i5 looks after platform functions, the i7 board is the half of the B2's two-board architecture that belongs to your code. This page exists for the three moments B2 fleets meet — a board needs replacing, a spare needs to sit on the shelf, or an autonomy stack has outgrown the standard fit and wants another slot filled.
It is an internal assembly: the board mounts inside the robot body — protected, integrated, no tethered laptop, no cart PC trailing the robot around a site. Autonomous navigation, machine vision, SLAM and mapping, data processing and edge computing all run onboard, on the x86 platform your existing software already targets.
For a working fleet that is the difference between a stalled program and a running one: a failed board swaps out, the spare drops straight in, and a heavy multi-sensor stack gets its own slot instead of sharing one computer. The board earns its shelf space the same way a spare BT2 battery does — by being there before it's needed.
Two Boards, Two Jobs: the i5 and the i7
The official B2 and B2-W specifications list two standard computers. An Intel Core i5 runs platform functions — the low-level work that keeps the robot itself moving, sensing and alive. An Intel Core i7 is reserved for user development: navigation stacks, vision pipelines, research code. The two never compete, which is why a busy autonomy workload doesn't make the robot stumble.
The same specification opens the option list above that pair: up to three additional compute devices, each either another Core i7 board or an NVIDIA Orin NX module, for teams whose stack outgrows a single board.
Core i7 and Orin NX Are Not Interchangeable Choices
The B2's optional compute slots take either an Intel Core i7 board or an NVIDIA Orin NX module. The i7 is the x86 path — standard PC software and CPU-heavy processing. The Orin NX is the GPU path — CUDA acceleration for camera-heavy AI and deep-learning inference. Both are official options for the same slots; which one suits depends on whether the workload leans on PC software or on CUDA.
One Board for the B2 and the B2-W
The legged B2 and the wheeled B2-W share one computing architecture: the official specification lists the same Intel Core i7 user-development board as a factory fit in both robots. One assembly covers a mixed fleet — no version split, no B2-W variant to cross-check.
It is not a cross-model Unitree part, though. The Go2, G1 and R1 platforms each take their own compute options, so this board is not the one for those robots.
Specifications
| Type | Intel Core i7 user-development computing board assembly |
| Platform | x86 |
| Position | Internal — mounted inside the robot body |
| Standard on | Unitree B2 · Unitree B2-W |
| Expansion | Up to 3 optional compute devices — Core i7 or NVIDIA Orin NX |
| In the box | 1 × Unitree Intel Core i7 Computing Board Assembly |
Shipping, Quality Guarantee & Board Care
The board assembly contains no lithium cells, so it ships as standard express freight rather than battery-class cargo — worldwide via DHL or FedEx, with the transit time confirmed in your quote.
Every Unitree Intel Core i7 Computing Board is 100% quality-inspected before it ships and packed as protected electronic cargo, so it arrives in perfect working order. From there it is an internal computer like any other — dry hands, gentle with the connectors, and it goes back to the same internal mount it came from.
Last updated: October 2026.
